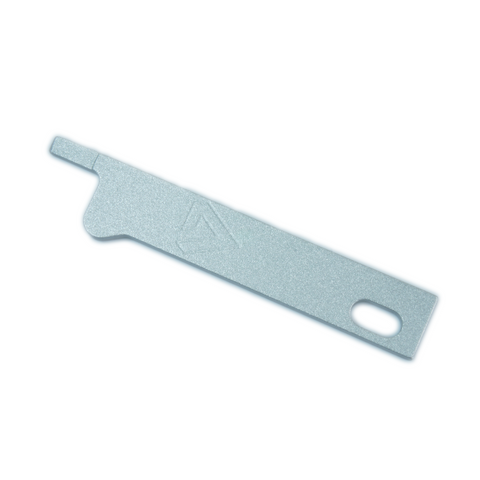

Muzzle Brake Removal Tool
Always start with your firearm unloaded and safe. Hold your firearm in a secure position with the barrel facing up and the sights facing away from you.
- Insert the back side of the removal tool (side with the hole milled) into the guide rod/ spring plug hole, (0.399-inch hole)
- Depress the tool about 1/8 inch and rotate compensator about 15 degrees counter clockwise.
- Insert thin side of removal tool depressing the edge of the spring cap about 0.25 inches while rotating compensator to 4 0'clock position. At this point the compensator can be removed.
Caution!!! The spring cap is under tension and may be ejected causing facial/eye injury.
